Smart hipot DC up to 60 kV
- Leakage current up to 6 mA
- Remote control by Android device
- Measures the output voltage and leakage current
- “Pass/Fail” LED indicator
- Adjustable parameters: voltage, maximum leakage current, ramp and test duration
- Ripple < 2 %
- Polarity: negative voltage, positive ground
- USB and Bluetooth interface
- Built-in memory to store test results
- Lightweight and robust, developed for field work

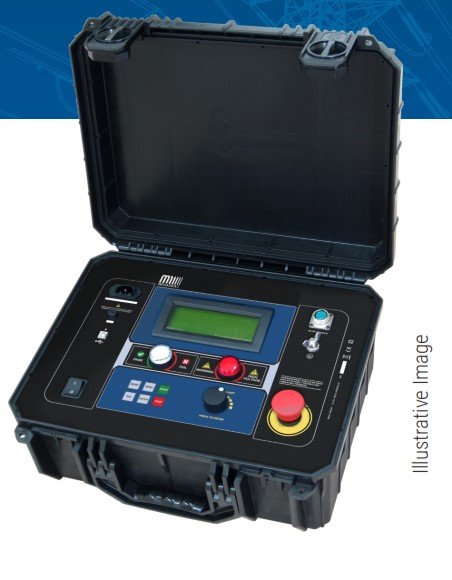

The Smart Hipot DC HP60KV is an instrument for the latest generation dielectric tests. The voltage output is adjustable, reaching up to 60,000 Volts of direct current. For being digital, it is possible to program the voltage, test duration, maximum leakage current and ramp rise or fall, allowing to perform more sophisticated tests automatically.
Has one LED to indicate the presence of high voltage in the output terminal during a measurement and one bi-color LED to indicate the test result (Pass / Fail).
Meeting the most stringent security requirements, the system is divided into two modules, one for control and the other for high voltage. The high voltage module is equipped with an audible alarm and both modules have emergency stop switch. Through an Android device it’s possible to program all parameters of the hipot, besides remotely controlling the tests, further increasing the security.
Test voltage
2,000 V up to 60,000 V
Test voltage resolution
100 V from 10 kV up to 60 kV
10 V up to 9.99 kV
Test voltage accuracy
± (2 % of nominal value ± 2 digits) with 1 mA load
Polarity
Negative voltage, positive ground
Leakage current
Max. 6 mA
Leakage current resolution
0.01 mA
Leakage current accuracy
± (2 % of nominal value ± 2 digits)
Ripple
< 2 %
Measuring modes
Manual mode, Ramp test, “Pass / Fail” test and timed test
Safety
Emergency stop switches, Sparks auto-detection, Visual indicators (LEDs) and Audible indicator
Display
Alphanumerical LCD display, 4 lines / 20 characters (Big Number)
Chronometer
Up to 20 min., indication in seconds
Built-in memory
Memory for storing up to 16,000 measured values
Safety
IEC 61010-1
Protocol
Modbus
USB
For configuration, control and download the stored values
Bluetooth
For configuration, control and download the stored values
MegaLogg3 software (Desktop)
To transfer stored data in the equipment’s memory, analyze it and generate test reports
BlueLogg app (Android device)
For remote control, allowing to configure, run tests and generate reports
IP rating
IP65 (with closed lid)
Operating temperature
-5 °C to 50 °C
Storage temperature
-25 °C to 70 °C
Humidity
95 % RH (non condensing)
Power supply
200 - 240 V~ 50/60 Hz 450 VA
Weight
Control module : approx. 7.6 kg
High voltage module : approx. 9.6 kg
Dimensions
Control module : 450 x 360 x 190 mm
Accessories
1 Interconnecting cable (control - high voltage modules)*
1 High voltage cable*
1 Return cable*
1 Protective ground cable*
1 Power cord
1 USB cable
1 Control module carrying bag
1 High voltage module carrying bag
1 User guide
1 MegaLogg3 software
1 BlueLogg app
* Supplied in different lengths on request.
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Technical specifications
|
ENVIRONMENTAL |
|
|
IP rating |
IP65 (with closed lid) |
|
Operating temperature |
-5 °C to 50 °C |
|
Storage temperature |
-25 °C to 70 °C |
|
Humidity |
95 % RH (non condensing) |
|
POWER SUPPLY |
|
|
Mains |
200 - 240 V~ 50/60 Hz 450 VA |
|
MECHANICAL (OF THE INSTRUMENT) |
|
|
Weight |
Control module: approx. 7.6 kg High voltage module: approx. 9.6 kg |
|
Dimensions |
Control module: 450 x 360 x 190 mm High voltage module: 450 x 360 x 190 mm |
Included accessories
- Interconnecting cable (control - high voltage modules)*
- High voltage cable*
- Return cable*
- Protective ground cable*
- Power cord
- USB cable
- User guide
- Megalogg 3 software (download)
- BlueLogg app (download)
- Control module carrying bag
- High voltage module carrying bag
* Supplied in different lengths on request.
