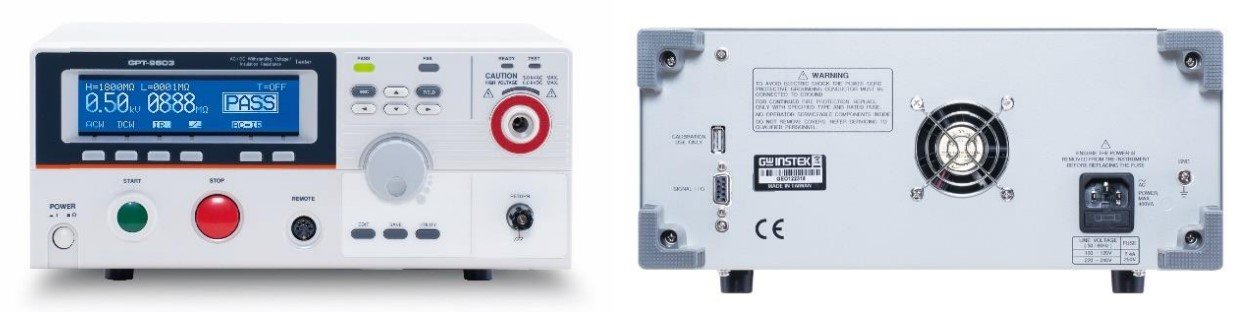

AC WITHSTANDING

Output-Voltage Range

0.10kV~ 5.00kV ac

Output-Voltage Resolution

10V

Output-Voltage Accuracy

± (1.5% of setting + 2 counts) with no load

Maximum Rated Load

100 VA (5kV/20mA)

Maximum Rated Current

20mA (0.5kV < V ≦ 5kV)

5mA (0.1kV ≦ V≦ 0.5kV)

Output-Voltage Waveform

Sine wave

Output-Voltage Frequency

50 Hz / 60 Hz selectable

Voltage regulation

± (1.5% + 2 counts) [full load → no load]

Voltmeter Accuracy

± (1.5% of reading + 2 counts)

Current Measurement Range

0.01mA~20.0mA

Current Best Resolution

0.01mA / 0.1mA

Current Measurement Accuracy

±(2.0% of reading + 10 counts) when HISET < 1.00mA

±(2.0% of reading + 3 counts) when HISET ≧ 1.00mA

Current Judgment Accuracy

±(3.0% of setting + 10 counts) when HISET < 1.00mA

±(3.0% of setting + 3 counts) when HISET ≧ 1.00mA

Window Comparator Method

Yes

ARC Detect

Yes

RAMP (Ramp-Up Time)

0.1s fixed

TIMER (Test Time)

OFF, 1s~180s

GND

ON

INSULATION RESISITANCE

Output-Voltage

50V, 100V, 250V, 500V, 1000V dc

Output-Voltage Accuracy

± (3.0% of setting + 1 count) [no load]

Resistance Measurement Range

1MΩ~ 2000 MΩ

Test voltage

Measurable Range

Accuracy

50V/100V/250V

1~ 50 MΩ

51~ 2000 MΩ

±(5% of reading + 2MΩ)

±(10% of reading + 2MΩ)

500V/1000V

1~ 500 MΩ

501~ 2000 MΩ

±(5% of reading + 2MΩ)

±(10% of reading + 2MΩ)

Window Comparator Method

Yes

Output Impedance

600 kΩ

RAMP (Ramp-Up Time)

0.1s fixed

TIMER (Test Time)

OFF, 1s~180s

GND

OFF (fixed)

TEST MODE*

SINGLE

ACW, DCW, IR

AUTO

AC-IR, IR-AC, DC-IR, IR-DC

INTERFACE

Remote Terminal (Front)

Standard

SIGNAL IO

Standard

GENERAL

Display

240 x 48 Ice Blue dot matrix LCD

Power Source

AC 100V-120V/220V-240V ±10%, 50/60Hz

Power Consumption

400VA max.

Dimensions & Weight

330(W) x 148(H) x 385(D) mm

approx.9kg(Max)
