Specification :
- 100MHz Bandwidth，1GS/s sample rate
- 8-bit high resolution ADC
- 40M record length max 70,000 wfms/s waveform refresh rate
- low back ground noise

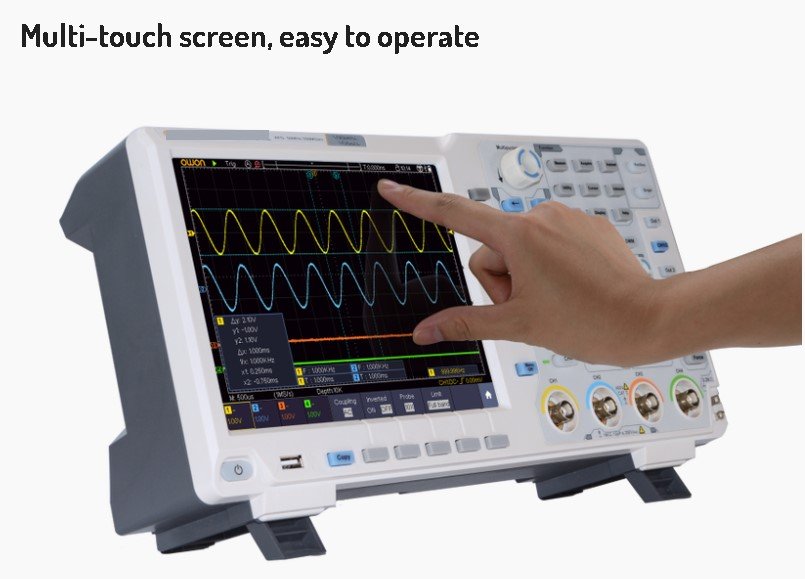

- 8 inch 800 x 600 high resolution LCD, optional multi-touch screen, more user-friendly operation experience
- SCPI, and LabVIEW supported
- multi- trigger, and bus decoding function
- multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA
Leading 45,000 frame/sec waveform refresh rate, muti-level gray scale and color temperature display.

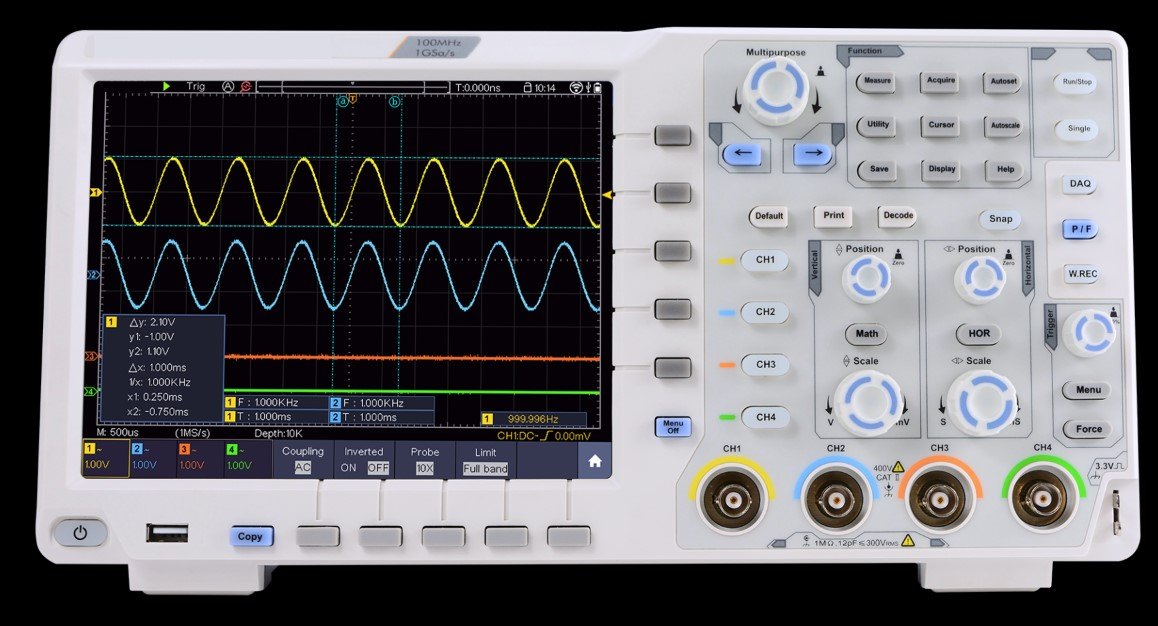

| Model | OWO2101 |
|---|---|
| Bandwidth | 100MHz |
| Sample Rate | 1GS/s |
| Vertical Resolution (A/D)) | 8 bits |
| Record length | 40M |
| Waveform Refresh Rate | 45,000 wfms/s |
| Horizontal Scale (s/div)) | 2ns/div - 1000s/div, step by 1 - 2 - 5 |
| Channel | 4 |
| Display | 8" color LCD, 800 x 600 pixels display |
| Sample Rate / Relay Time Accuracy | ±2.5 ppm |
| Input Coupling | DC, AC, GND |
| Vertical Sensitivity | 1mV/div - 10V/div (at input) |
| Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional) |
| Bus Decoding(optional) | I2C, SPI, RS232, CAN |
| Trigger Mode | Auto, Normal, and Single |
| Vertical Range | ±2V(1mV/div～50mV/div)；±20V(100mV/div～1V/div)；±200V(2V/div～10V/div) |
| Waveform Math | +, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function |
| Communication Interface | USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) |
| Frequency Counter | available |
| Power Supply | 100V - 240V AC, 50/60Hz, CAT II |
| Fuse | 2A, T class, 250V |
| Battery (optional) | 3.7V, 13200mA |
| Dimension (W x H x D) | 340mmx177mmx90mm |
Inlcuded Accessories :
1 x Oscilloscope
1 x 220V Power cord
1 x CD ROM
1 x Quick start guide
1 x USB Cable
4 x Probes
