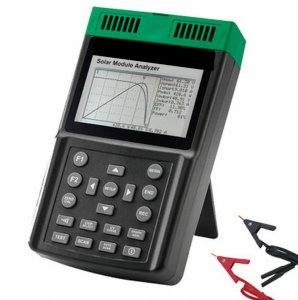

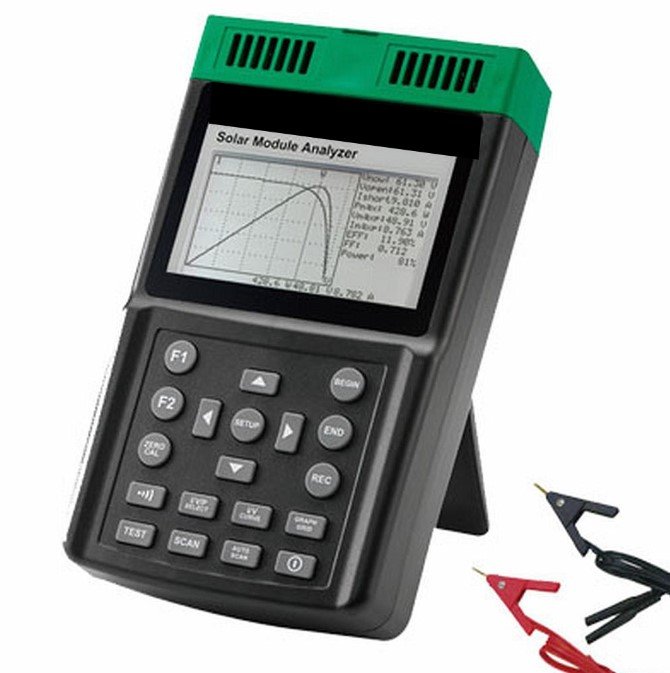

■ I-V curve test for solar cell/panel
■ Max. solar panel power (Pmax) search by auto-scan: 60V, 6A (180W capability)
■ Best resolution: 1mV, 0.1mA
■ Manual single point I-V test
■ Max. voltage (Vmaxp) at Pmax
■ Max. current (Imaxp) at Pmax
■ Voltage at open circuit (Vopen)
■ Current at short circuit (Ishort)
■ I-V curve with cursor to display each data point
■ Efficiency (%) calculation of solar panel
■ Solar panel area setting: 0.001 m2 ~ 9999 m2
■ Standard light source setting: 10 W/m2 ~ 1000 W/m2
■ Communicate with PC via USB cable
■ Min. power setting for alarm function
■ Built-in calendar clock
■ Built-in battery charging circuit
■ AC power adapter
■ Rechargeable lithium battery: 11.1V 1600mAh x 1pc.
■ Memory size: 100 records
■ Large LCD with backlight
■ Application:
1. Quality control in the production line, warehouse, or site of installation.
2. Identify the solar power system requirement.
3. Maintenance of solar panels.
4. Verify the best installation angle of solar panels
Product Features
- 60V, 6A
- I-V Curve Test for Solar Cell
- Max. Voltage (Vmaxp) and Max. Current (Imaxp) at Max. Power (Pmax)
- I-V Curve with cursor
- Calculation of Efficiency (%)
Specification
Electrical Specifications (23℃±5℃, Four-wire Measurement)
60V, 6A
DC Voltage Measurement:
| Range | Resolution | Accuracy |
| 0–6V | 0.001V | ±1% ± (1% of Vopen ± 9mV) |
| 6 - 10V | 0.001V | ±1% ± (1% of Vopen ± 0.09V) |
| 10–60V | 0.01V | ±1% ± (1% of Vopen ± 0.09V) |
DC Current Measurement:
| Range | Resolution | Accuracy |
| 0.01–0.6A | 0.1mA | ±1% ± (1% of Ishort ± 0.9mA) |
| 0.6 - 1A | 0.1mA | ±1% ± (1% of Ishort ± 9mA) |
| 1–6A | 1mA | ±1% ± (1% of Ishort ± 9mA) |
DC Current Simulation:
| Range | Resolution | Accuracy |
| 0.01–1A | 0.1mA | ±1% ± 0.9mA |
| 1 - 6A | 1mA | ±1% ± 9mA |
General Specifications:
| Battery Type | Rechargeable Lithium Battery, 3400mAh | |
| Battery Life | 400 times of linear scan from 60V to 0V and 0A to 12A | |
| Data Logging Memory Size | 99 records (PROVA 210) | |
| AC Adaptor | AC 110V or 220V input | 200: DC 12V / 1-3A output 210: DC 15V / 1-3A output |
| Dimension | 257 (L) x 155 (W) x 57 (H) mm | |
| Weight | 1160 g / 40.0 oz (Batteries included) | |
| Operation Environment | 0℃ - 50℃, 85%RH | |
| Temperature Coefficient | 0.1% of full scale / ℃ (< 18℃ or >28℃) | |
| Storage Environment | -20℃ - 60℃ 75% RH | |
| Accessories | User manual x 1, AC adaptor x 1 Optical USB Cable x 1 Software CD x 1, Software Manual x 1 Kelvin Clips (6A max) x 1 set (PROVA 200A) Kelvin Clips (12A max) x 1 set (PROVA 210) Rechargeable lithium battery x 1 |
|
