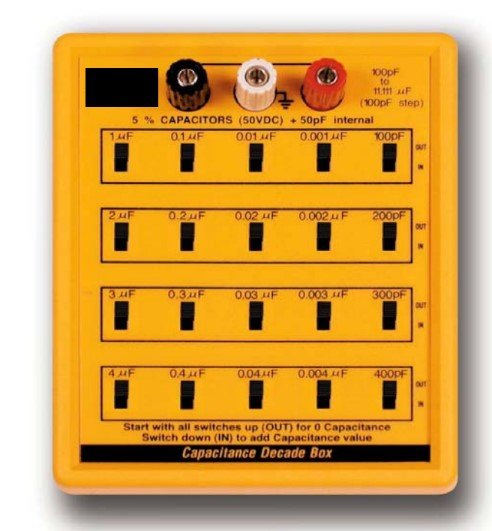

Achieve Precision with a Smart and Versatile Capacitance Decade Box

The CBOX-406 Capacitance Decade Box offers accurate and reliable capacitance measurements with a compact and durable design, making it an essential tool for various applications in troubleshooting, maintenance, education, production line testing, and more.

Exceptional Features of the CBOX-406:

1. Wide Application Range: Suitable for general applications, troubleshooting, maintenance, education, vocational training, production line testing, radio and TV services, working standards, research design & development, and physics laboratory work.

2. Pocket Size and Reliable Performance: Compact design offering accurate and reliable performance with a wide range and high resolution (100 pF to 11,111 uF).

3. Five Decades of Capacitance: Equipped with five decades of capacitance, allowing for precise adjustment and measurement.

4. Easy Operation with Slide Switches: Features slide switches that allow users to easily add or subtract capacitance values for the desired measurement.

5. Durable Construction: Built with an ABS plastic housing case and rugged components, ensuring long-lasting durability.

Technical Specifications:

- Range: 100 pF to 11,111 uF (100 pF per step)

- Accuracy: ± 5% capacitors used throughout

  - @ < 1 uF: 1 KHz test frequency

  - @ ≥ 1 uF: 100 Hz test frequency

- Voltage Limit: 50 V DC, non-polarized capacitors

- Internal Residual Capacitance: About 50 pF

- Power Supply: None required

- Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)

- Operating Humidity: Less than 80% RH

- Weight: 312 g (0.69 lb)

- Dimensions: 14.7 cm x 11.7 cm x 5.1 cm (5.79 x 4.61 x 2.01 inches)

Included Accessories:

- Operation Manual

Optional Accessories:

- Test alligator clips (one pair, Model: TL-03)

Operation Procedure:

1. Start with all switches up (OUT) for minimum capacitance.

2. Switch down (IN) to add capacitance value.

Versatile Applications:

Ideal for use in troubleshooting, maintenance, education, vocational training, production line testing, radio and TV services, working standards, research design & development, and physics laboratory work.

Invest in the CBOX-406 Capacitance Decade Box for reliable, precise measurements and a robust design that meets the diverse needs of various industries with precision and ease.
