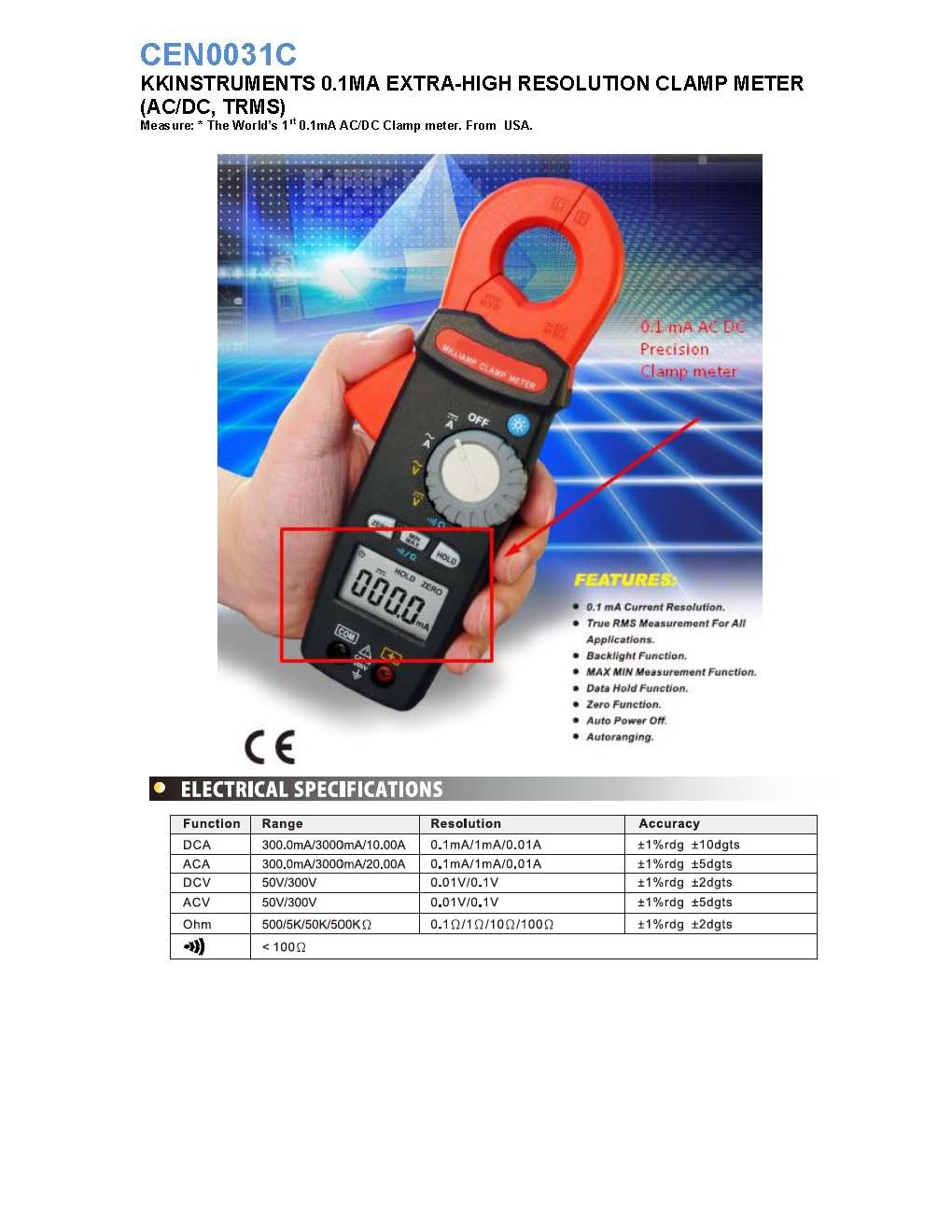

CEN0031C - CL773 HIGH RESOLUTION TRMS Milli-Amp AC/DC Clamp Meter (0.1mA) (AC/DC 0.1MA , TRMS) -262 Production information

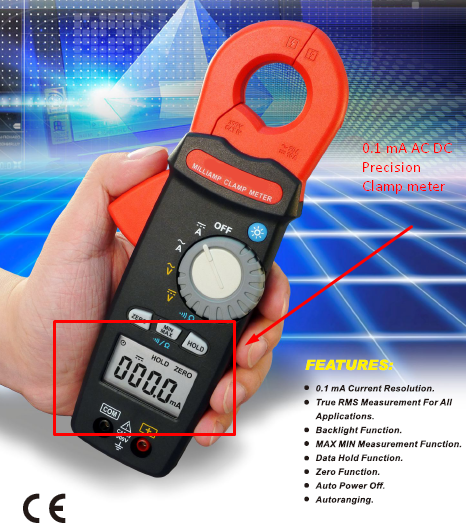

FEATURES

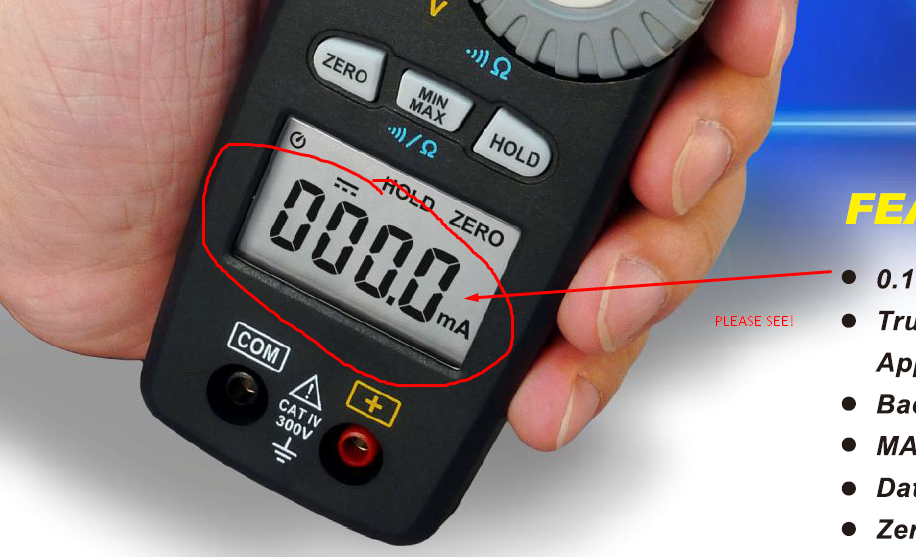

• 0.1 mA Current Resolution
• True RMS Measurement For All Applications
• Backlight Function
• MAX MIN Measurement Function
• Data Hold Function
• Zero Function
• Auto Power Off
• Autoranging
SPECIFICATIONS
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| DCA | 300.0mA/3.000mA/10.00A | 0.1mA/1mA/0.01A | ± 1%rdg ± 10dgts |
| ACA | 300.0mA/3.000mA/20.00A | 0.1mA/1mA/0.01A | ± 1%rdg ± 5dgts |
| DCV | 50V/300V | 0.01V/0.1V | ±1%rdg ± 2dgts |
| ACV | 50V/300V | 0.01V/0.1V | ± 1%rdg ± 5dgts |
| Ohms | 500Ω/5KΩ/50KΩ/500KΩ | 0.1Ω/1Ω/10Ω/100Ω | ±1%rdg ± 2dgts |
| •)))_Active Sound Level | < 100Ω | ||
| Display: 4 digital Liquid display, Maximum reading 5000 |
| Sampling Rate: 2 times/sec |
| Battery: 1.5V size AAA battery x 2 |
| Dimensions: 206x76x33.5 mm |
| Weight: 270g |
| Maximum Jaw Opening: ø 23 mm |
PS. The above specifications and other information are subject to change without notice.
Please contact sales person for the latest specifications update.
