Functions & Features

● High quality and precision.
● Automatically identify 7 types of Impact devices for special application.
● Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL.
● Direct calibration on HL,HRC,HB.
● PC Software for data transmission, analysis and measurement reports printing.
● Test at any angle, even upside down.
● Large LCD screen with back-light, showing all functions and parameters.
● Upper and lower limit and sound alarm.
● Conversion to tensile strength (U.T.S).
● 3 years warranty and life-long services.

Measuring Materials

● 10 types of metals: steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron,
cast aluminum alloy, copper zinc alloys, copper and tin alloy, copper, forged steel.

Technical Parameters

Application Fields

●The bearings and other parts, heavy work-pieces, metal material, pressure vessel, failure analysis of turbine  generator unit and equipment
●Mechanical or permanent assembly components have been installed, the test space is very narrow, requires the original record regular test results
●Large work-piece within a wide range of more rapid test measurement site

Measuring Conditions

●The weight of measuring object must be more than 2kg.
●The thickness must be more than 10mm.
●The surface roughness must be no less than 1.6μm.

Tips: If do not meet the above conditions, the measuring object should be laminated with steel substrate by coupling agents.

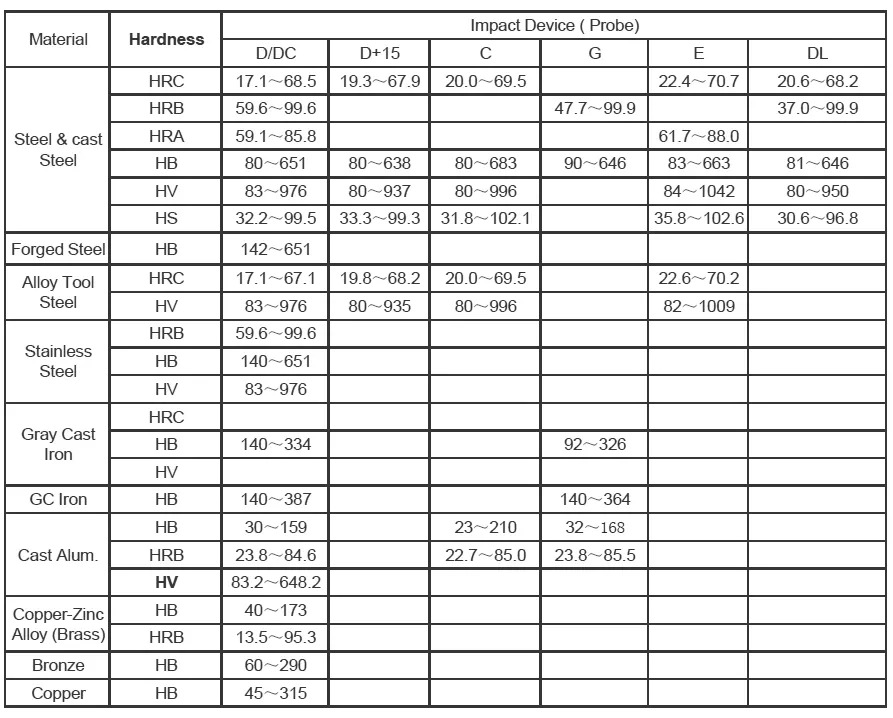

Measuring Range Table
