- High current loop tester
- Single and 3 phase testing
- 16 Hz to 400 Hz operation
- CATIV 300 V applications
- Two wire lead set or mains plug leads
- Tough armoured case
- Built-in cover

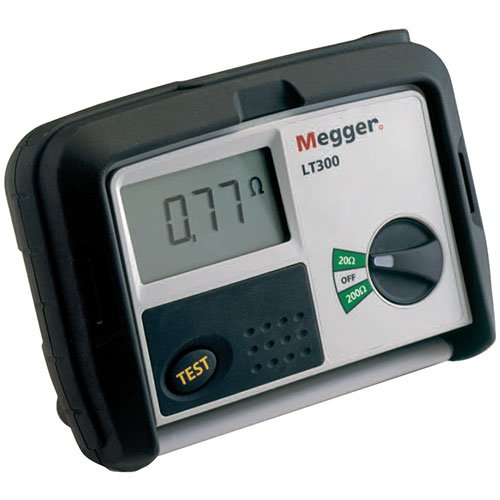

The Megger LT300 High Current Loop Tester offers high current loop testing over a wide range of frequencies and supply voltages with simple, fast, two wire operation. It has a large clear display that aids visibility in poor conditions.
The high current loop test provides fast accurate and stable results with a resolution to 0.01 ½ on the 20 ½ range. Supply frequency is indicated upon connection to the supply. This will automatically set to the measured supply frequency either 16 Hz, 50/60 Hz or 400 Hz. Testing will commence automatically.
The instrument is housed in a rubber armoured case with a built-in cover to protect the display when not in use. The IP54 weatherproof rating provides excellent protection in adverse conditions.
Specification Voltage measurement range Voltage range 0 V to 550 V (400 V @ 16 Hz) Accuracy ±5% ±2 V Loop test operating frequencies 16 Hz 15 Hz to 18 Hz, 33 Hz, 29 Hz to 337 Hz 50/60 Hz 40 Hz to 70 Hz, 125 Hz, 100 Hz to 142 Hz 400 Hz 260 Hz to 498 Hz Test currents 20 Ω Range 200 Ω Range 550 V 27 A 2.7 A 230 V 12 A 1.2 A 115 V 6 A 0.6 A 50 V 3 A 0.3 A Loop test accuracy Loop resistance 0 to 19.99 Ω (20 Ω range) ±5% ±0.03 Ω 0 to 199.9 Ω (200 Ω range) ±5% ±0.5 Ω Battery 8 x AA (LR6) alkaline or NiMH rechargeable cells. Safety Meets the requirements of IEC61010-1 300 V CATIV phase to earth or 550 V Phase to Phase (400 V @ 16 Hz). Dimensions 203 x 148 x 78mm ( 8 x 5.8 x 3 in)
